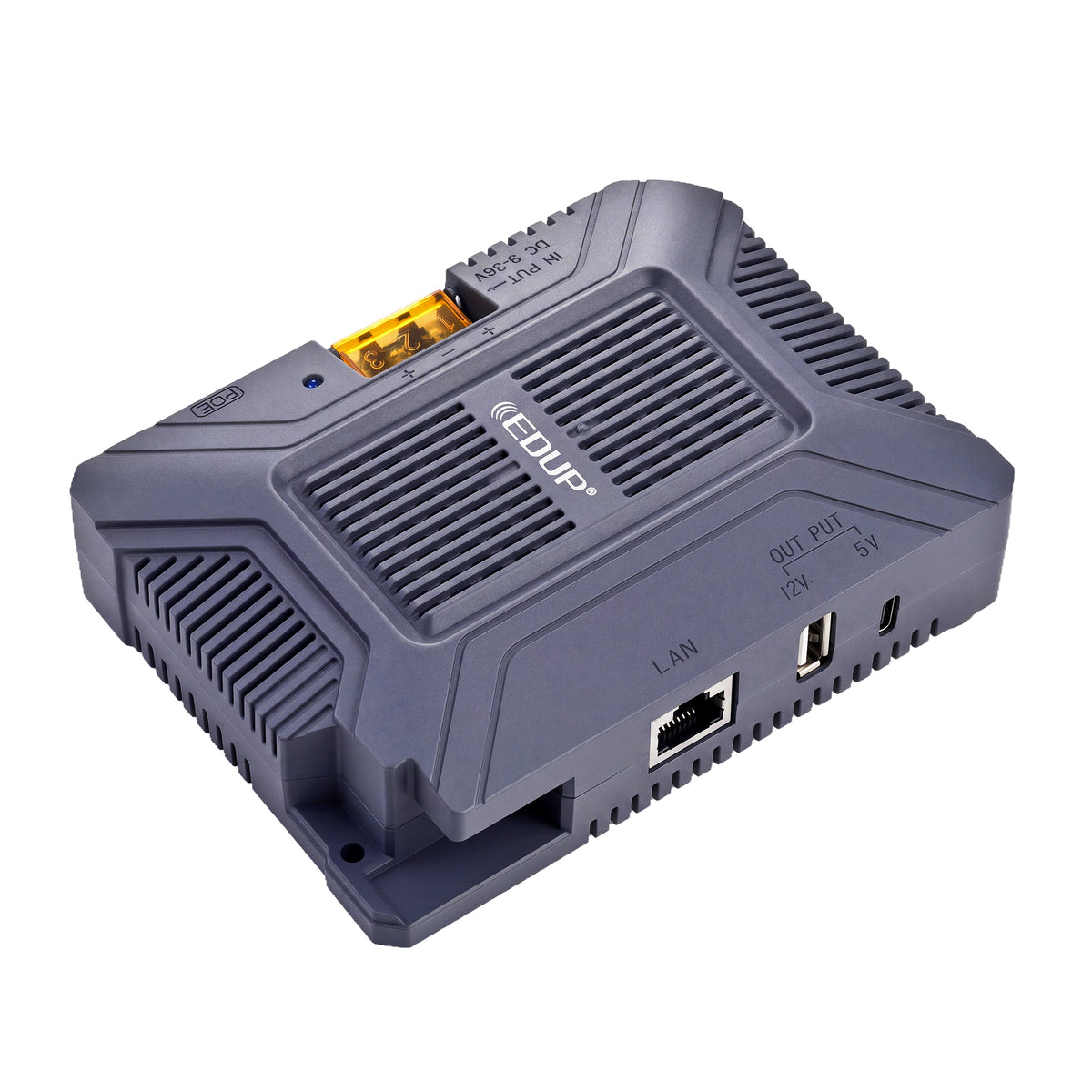

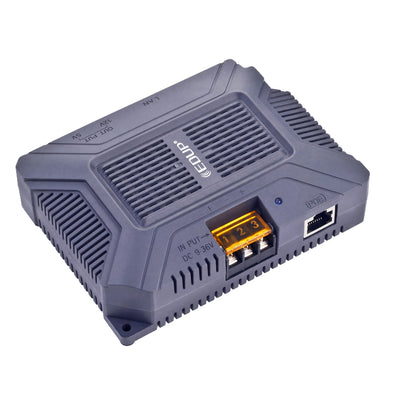

Starlink 200W DC to PoE Converter | 12V/24V with USB-A & USB-C

Upgrade your Starlink power setup with the 4x4LAB 200W DC to PoE Power Converter, a compact, multi-function solution that combines vehicle battery power conversion, Gigabit Ethernet and two additional USB outputs in one unit. Designed for Starlink Gen 3 Standard, it's ideal for integrating satellite internet into 4WDs, caravans, motorhomes and off-grid systems without relying on a separate mains inverter. Can be incorporated into a Starlink Mini setup when paired with a splitter.

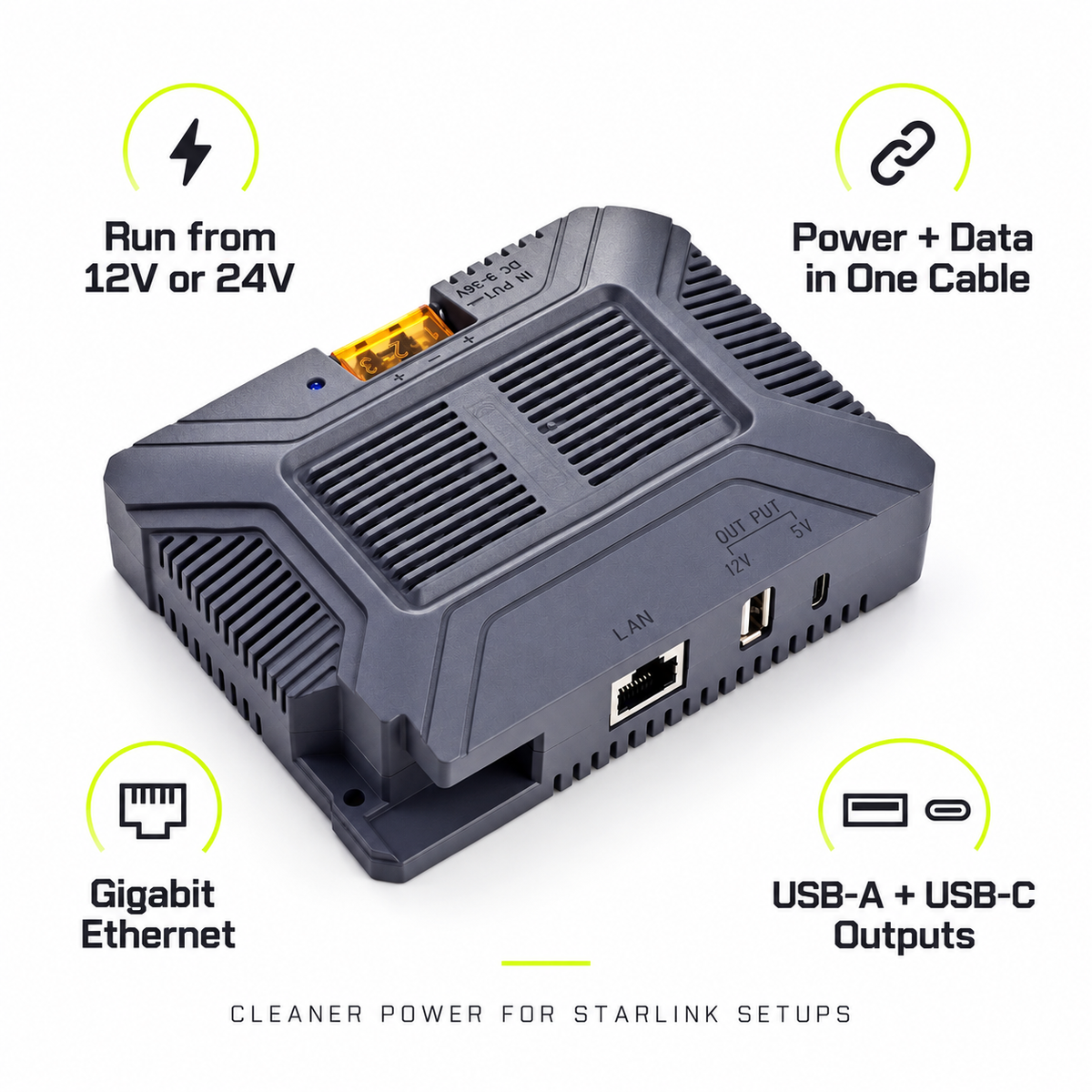

Key Features:

• Power Starlink From 12V or 24V – Connect to a suitable vehicle or off-grid battery system, eliminating the need for a separate 240V inverter.
• 200W-Rated Power Converter – Converts 9–36V DC input to a 54V PoE output, providing a dedicated power solution for compatible Starlink installations.
• Power & Data Through One Cable – Combines power delivery and Ethernet connectivity over one suitable cable for cleaner, more organised installations.
• Gigabit Ethernet Support – Supports 10/100/1000Mbps wired networking, allowing integration with compatible routers and network equipment.
• USB-A 12V Output – Provides up to 36W (12V/3A) for compatible 12V accessories, helping reduce the need for additional power converters.
• USB-C 5V Output – Delivers up to 15W (5V/3A) for compatible USB-C devices and accessories.
• Built-In Electrical Protection – Includes surge and ESD protection to help protect the converter against electrical disturbances.
• Compact, Mountable Design – Suitable for installation inside protected vehicle compartments, electrical cabinets and off-grid setups.
• Starlink Mini Expansion Option – Can be incorporated into a Starlink Mini setup when paired with a separately purchased splitter specifically rated for this converter's 54V PoE output.

One unit for power conversion, wired connectivity and compatible USB accessories. Less equipment, cleaner wiring and a smarter off-grid setup.

The 4x4LAB 200W DC to PoE Power Converter is designed to run compatible Starlink equipment directly from a 12V or 24V vehicle battery system, while also providing Gigabit Ethernet connectivity and dedicated USB power outputs.

It's ideal for 4WDs, caravans, motorhomes, camper trailers and off-grid installations where you want to power your Starlink setup without a separate 240V inverter.

Starlink Compatibility:

• Starlink Gen 3 Standard – Designed for use with a suitable Gen 3 PoE cable and connection configuration.
• Starlink Mini – Requires a separately purchased, compatible voltage-regulating PoE splitter designed to accept the converter's 54V output and deliver the correct power to the Mini.

Compatible Power Systems:

• 12V vehicle and auxiliary battery systems
• 24V vehicle and off-grid battery systems
• Compatible DC power supplies within the 9–36V input range
• Suitable caravan and motorhome DC electrical systems

Network & Accessory Compatibility:

• Gigabit Ethernet – Supports 10/100/1000Mbps connections with compatible networking equipment.
• USB-A (12V/3A) – Suitable for accessories specifically designed to accept 12V through USB-A.
• USB-C (5V/3A) – Suitable for compatible 5V USB-C devices and accessories.

Important: The PoE output uses 54V passive PoE and must only be connected to compatible equipment. Starlink Mini cannot be connected directly to this output without a correctly matched, voltage-regulating splitter.

A suitable DC power supply, compatible Ethernet cable and appropriate installation wiring are required.

The 4x4LAB 200W DC to PoE Power Converter combines DC voltage conversion, Gigabit Ethernet and USB power outputs in one compact housing, making it a practical solution for 12V/24V vehicle and off-grid Starlink installations.

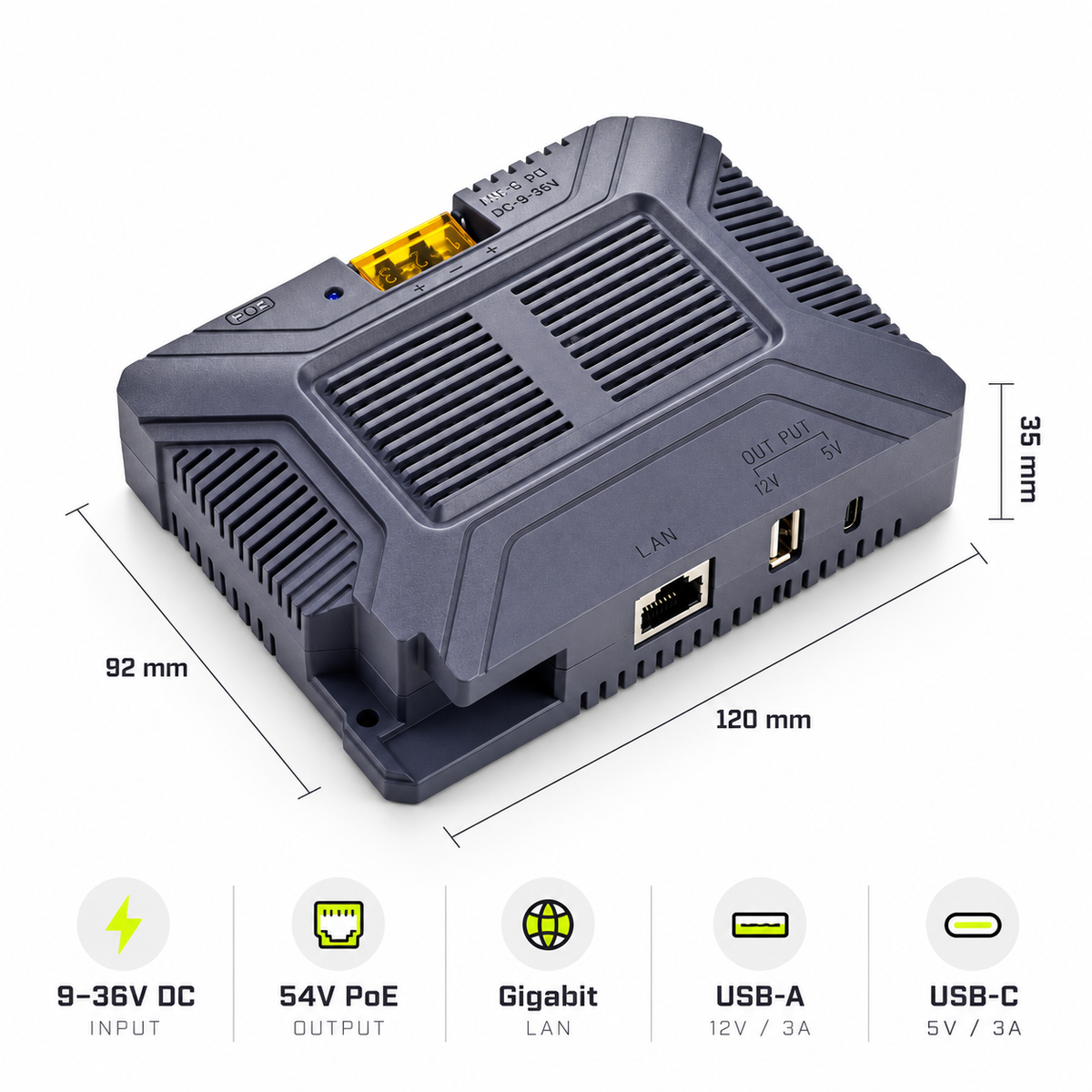

Physical Dimensions:

• Length: Approx. 120mm
• Width: Approx. 92mm
• Height: Approx. 35mm
• Colour: Grey

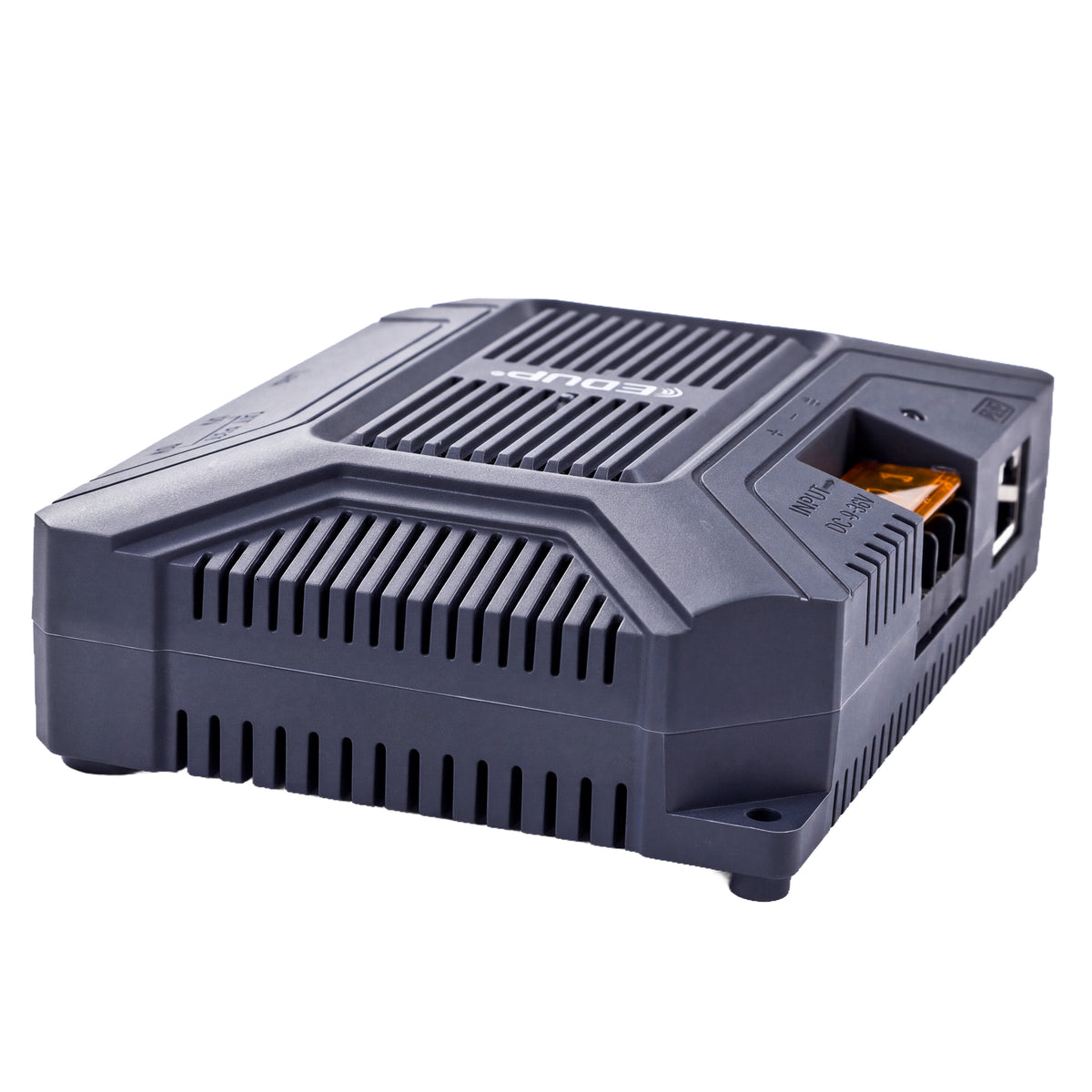

• Housing: Ventilated enclosure with mounting points
• Installation Type: Fixed mounting in a protected location

Electrical Specifications:

• Product Type: DC-to-PoE Step-Up Converter / Injector
• Manufacturer Model: EDUP EP-SK0075 (subject to supplier SKU confirmation)
• Input Voltage: DC 9–36V
• Compatible Systems: 12V and 24V DC
• Advertised Power Rating: 200W maximum
• PoE Output: 54V DC / 3A maximum
• PoE Type: Passive PoE
• Network Speed: 10/100/1000Mbps Gigabit Ethernet
• USB-A Output: 12V / 3A (36W maximum)
• USB-C Output: 5V / 3A (15W maximum)
• Network Connections: 1 × Gigabit LAN port, 1 × PoE output port

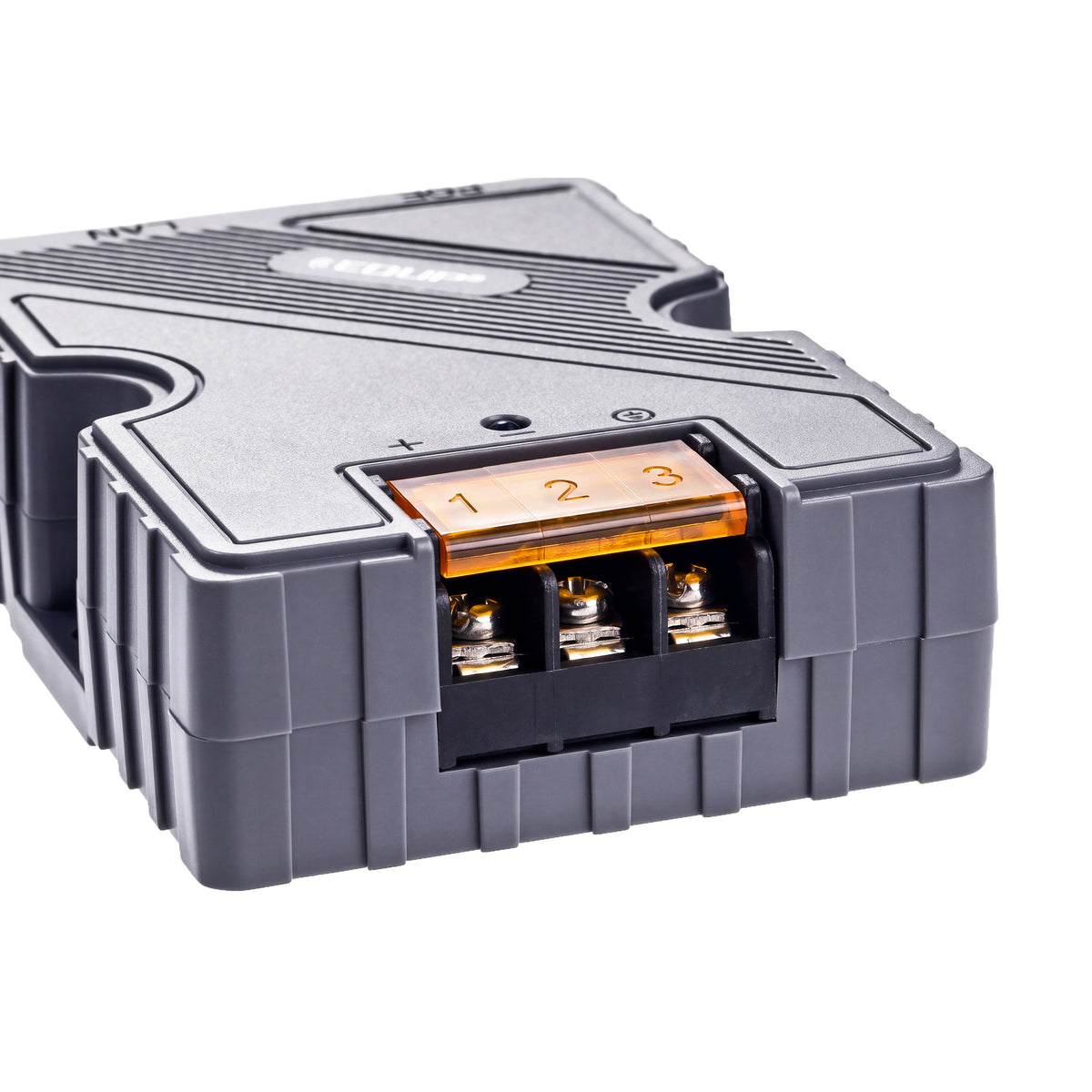

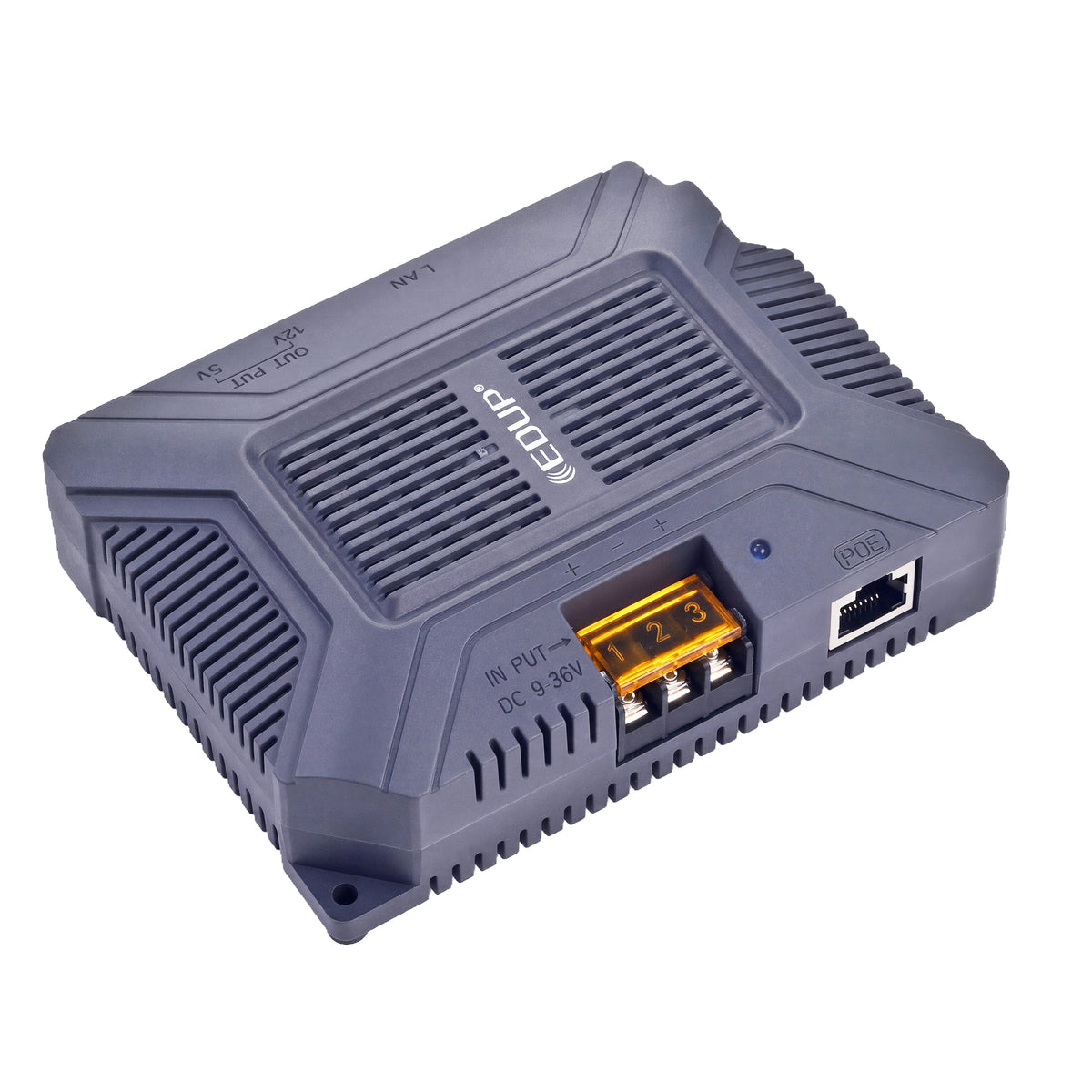

• DC Power Connection: 3-terminal input (positive, negative and ground)
• Surge Protection: Up to ±8kV
• ESD Protection: ±8kV contact, ±15kV air
• Operating Temperature: -20°C to +55°C
• Operating Humidity: 10–90% non-condensing

Starlink Compatibility:

• Starlink Gen 3 Standard – with the correct compatible PoE cable.
• Starlink Mini – requires a separate compatible voltage-regulating PoE splitter.

Please Note: The 200W rating is the manufacturer's advertised converter capacity. The stated 54V/3A PoE output corresponds to a maximum of 162W at that output; the rating should not be interpreted as 200W continuously available from the PoE port alone.

Dimensions are approximate and may vary slightly between production versions.

The 4x4LAB 200W DC to PoE Power Converter makes it easier to power a compatible Starlink installation from your vehicle's 12V or 24V electrical system without using a separate mains inverter.

It combines DC voltage conversion, PoE power delivery, Gigabit Ethernet and additional USB outputs in one compact unit.

Installation Difficulty: Moderate – DC wiring knowledge required.

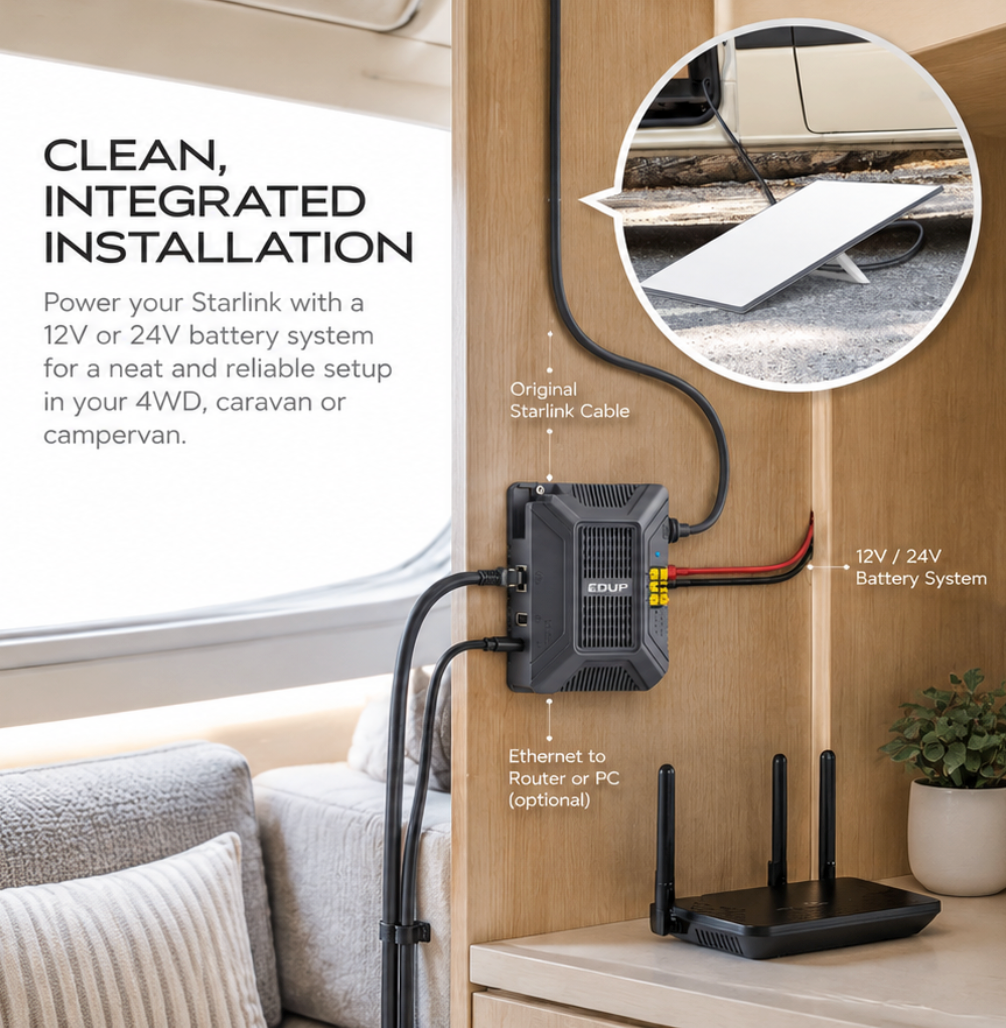

Step 1 – Choose Your Installation Location

Mount the converter in a dry, protected and ventilated location near your vehicle's battery system or electrical distribution equipment.

Suitable locations include a 4WD canopy, caravan electrical compartment or dedicated off-grid equipment cabinet.

Step 2 – Connect Your 12V or 24V Power Supply

Connect a suitable fused DC power supply to the converter's positive (+) and negative (−) terminals, following the manufacturer's terminal markings.

Connect the ground terminal as specified in the manufacturer's wiring instructions.

Step 3 – Connect Your Starlink Equipment

For Starlink Gen 3 Standard, connect the correct compatible Ethernet/PoE cable to the converter's PoE output and your Starlink dish.

For Starlink Mini, a separately purchased, compatible voltage-regulating PoE splitter is required between the converter and dish.

Step 4 – Connect Your Network (Optional)

Connect a compatible router or network device to the converter's Gigabit LAN port using a suitable Ethernet cable.

Step 5 – Connect USB Accessories (Optional)

The converter also provides:

• USB-A: 12V/3A maximum for compatible 12V accessories.
• USB-C: 5V/3A maximum for compatible 5V accessories.

Check device voltage and power requirements before connecting.

Step 6 – Power On & Test

Switch on your DC power supply and check the converter's indicator light. Allow your Starlink equipment to start, then confirm the internet and any connected networking equipment are operating correctly.

Important Installation Notes:

• Use a suitable inline fuse or correctly protected DC distribution circuit.
• Confirm wire sizing, input polarity and grounding before applying power.
• Use compatible Ethernet cabling and PoE equipment.
• Never connect the 54V passive PoE output directly to Starlink Mini or ordinary Ethernet devices.
• Keep the converter protected from moisture.
• Professional installation is recommended for hardwired vehicle electrical systems.

The 4x4LAB 200W DC to PoE Converter is a practical solution for integrating Starlink and compatible networking equipment into your existing vehicle or off-grid electrical system.

Instead of running a separate 240V inverter and multiple power adapters, the converter takes power directly from a suitable 12V or 24V DC system, converts it for compatible PoE equipment and provides additional USB-A and USB-C power outputs.

Fitment & Use Notes:

• 12V/24V Battery Integration – Designed for DC systems operating within the converter's 9–36V input range.
• Permanent & Semi-Permanent Installations – Suitable for 4WD canopies, caravans, motorhomes, camper trailers and off-grid electrical cabinets.
• Single-Cable PoE Connection – Allows power and Ethernet data to travel through one compatible cable for a cleaner installation.
• Starlink Gen 3 Standard – Supports suitable Gen 3 PoE installations when used with the correct cable and connection arrangement.
• Starlink Mini – Requires a compatible voltage-regulating splitter purchased separately.
• External Router Connectivity – The Gigabit LAN port supports integration with compatible wired networking equipment.
• Additional USB Power – Includes 12V USB-A and 5V USB-C outputs for compatible accessories.
• Protected Installation Location – Install the converter in a dry, ventilated location, away from direct moisture and excessive heat.
• Hardwired DC Connection – Requires appropriately sized wiring, correct polarity and suitable circuit protection.

Please Note: This converter is not a complete plug-and-play Starlink installation kit. Power wiring, Ethernet cabling and any required Starlink Mini splitter must be supplied separately.

The USB-A connection delivers 12V rather than standard 5V USB power. Always check the requirements of connected devices before use.

The 4x4LAB 200W DC to PoE Power Converter provides power conversion, Gigabit Ethernet connectivity and additional USB power outputs in a single compact unit.

It's designed for integrating compatible Starlink equipment into 12V/24V vehicle and off-grid electrical systems without needing a separate 240V inverter.

Package Includes:

• 1 × 200W DC to PoE Power Converter / Injector – Featuring 9–36V DC input, 54V PoE output, Gigabit Ethernet, USB-A and USB-C power connections.

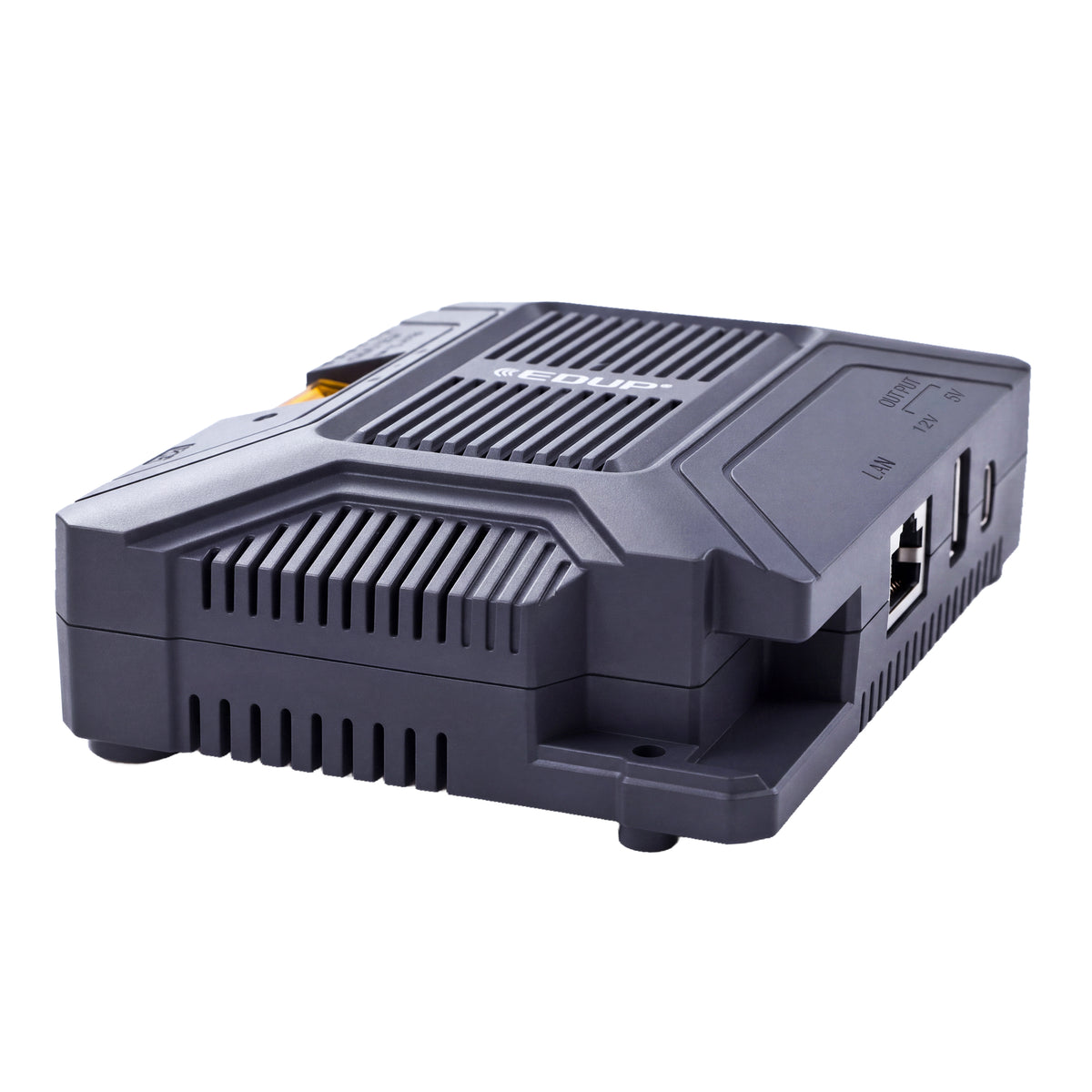

Connections Built Into the Converter:

• 1 × PoE Output Port
• 1 × Gigabit Ethernet LAN Port
• 1 × USB-A Power Output (12V/3A)
• 1 × USB-C Power Output (5V/3A)
• 1 × DC Power Input Terminal Block

Please Note: This listing is for the converter only. Starlink dish, Starlink Mini splitter, Ethernet cables, battery, DC power wiring, fuse and external networking equipment are not included.

For Starlink Mini installations, a separately purchased, compatible voltage-regulating PoE splitter is required.
