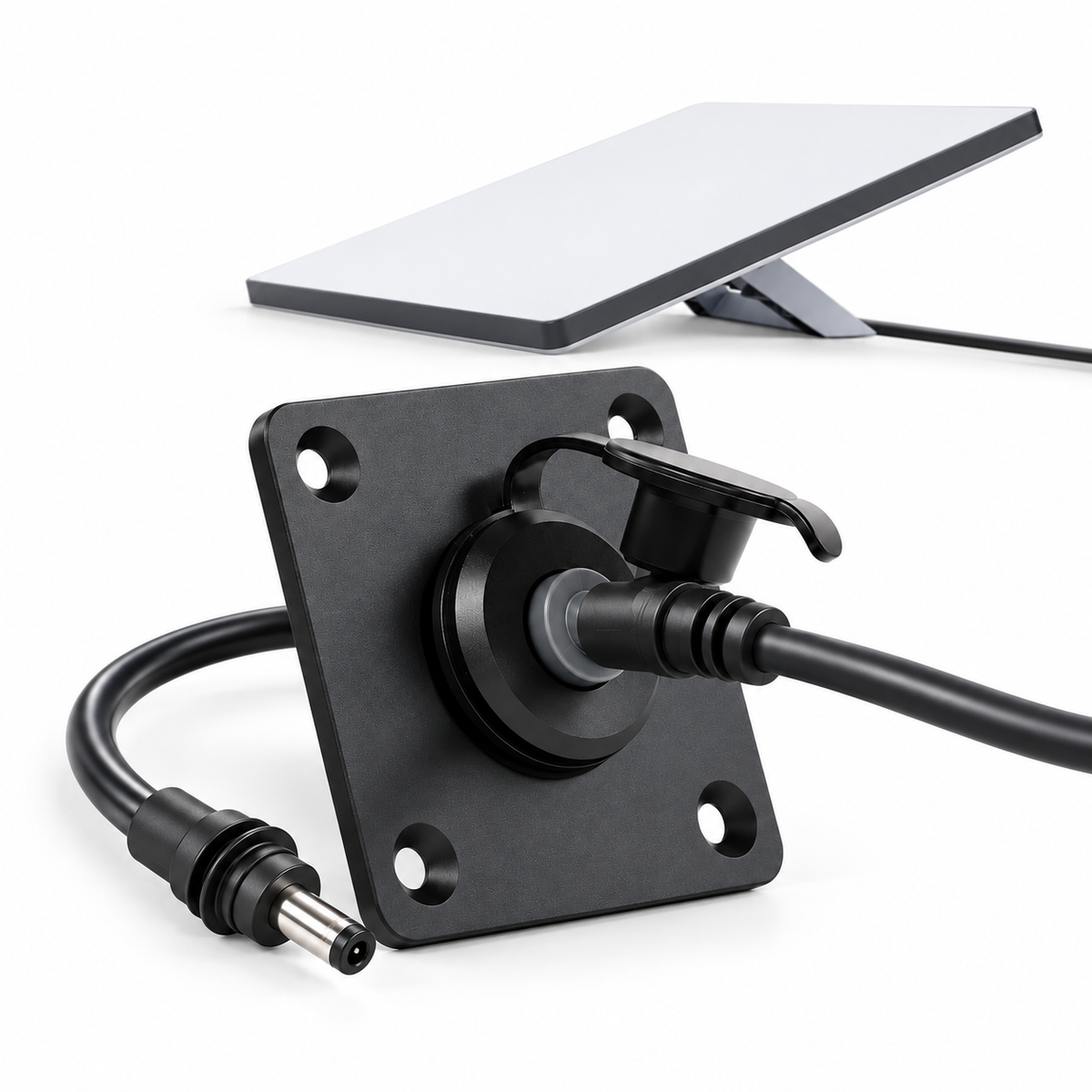

Starlink Mini Waterproof Wall Pass Through Kit

Key Features

• Dedicated Starlink Mini Power Connection – Provides a convenient external DC connection point for compatible Starlink Mini power setups.

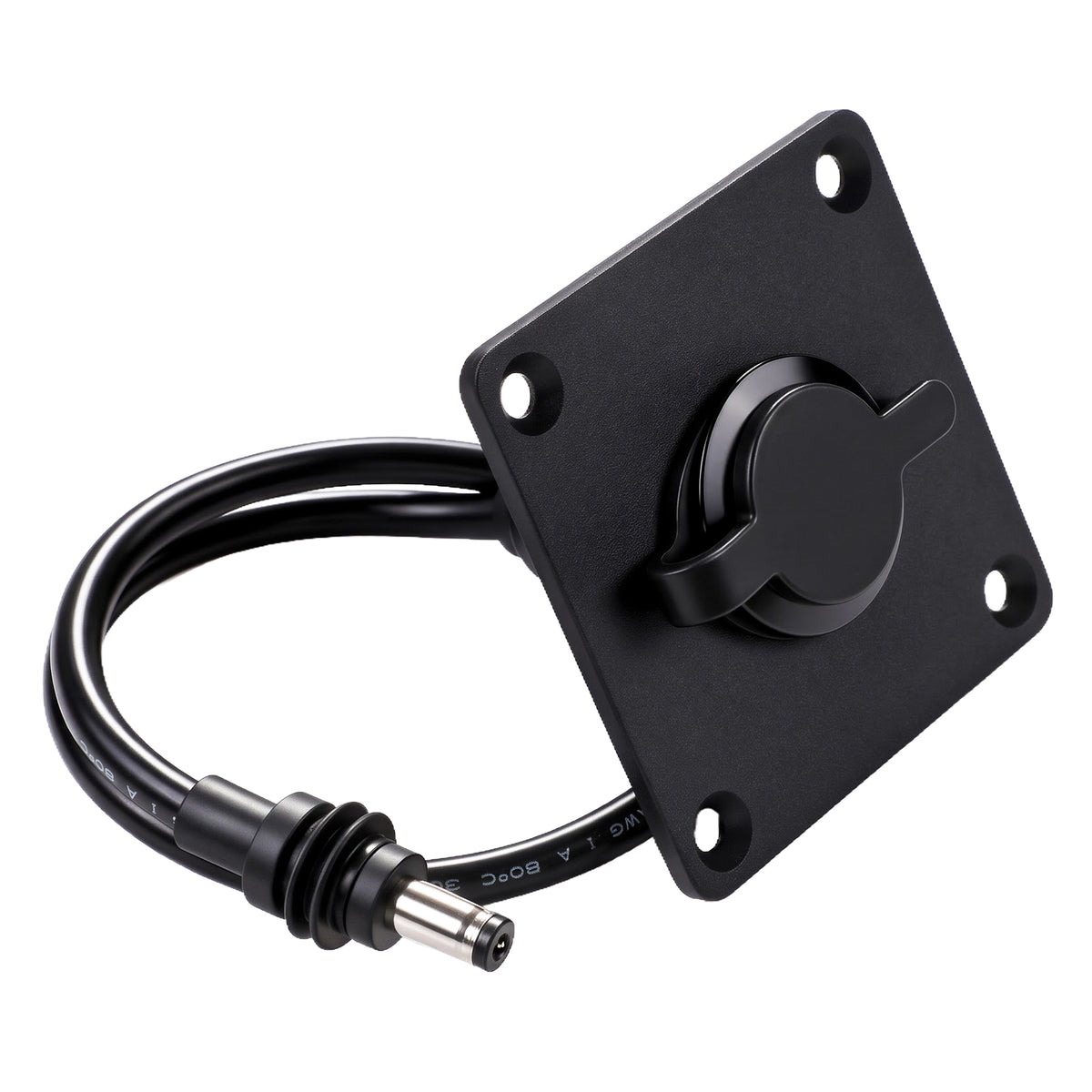

• Waterproof Protective Cap – Helps protect the socket from moisture, dust and dirt when disconnected.
• Durable Aluminium Construction – Strong, lightweight mounting plate designed for a neat, long-lasting installation.
• 5.5 × 2.1mm DC Socket – Standard DC barrel connection compatible with suitably matched power cables and adapters.
• Recessed Panel-Mount Design – Creates a clean, integrated finish on caravan walls, camper trailers and 4WD canopies.

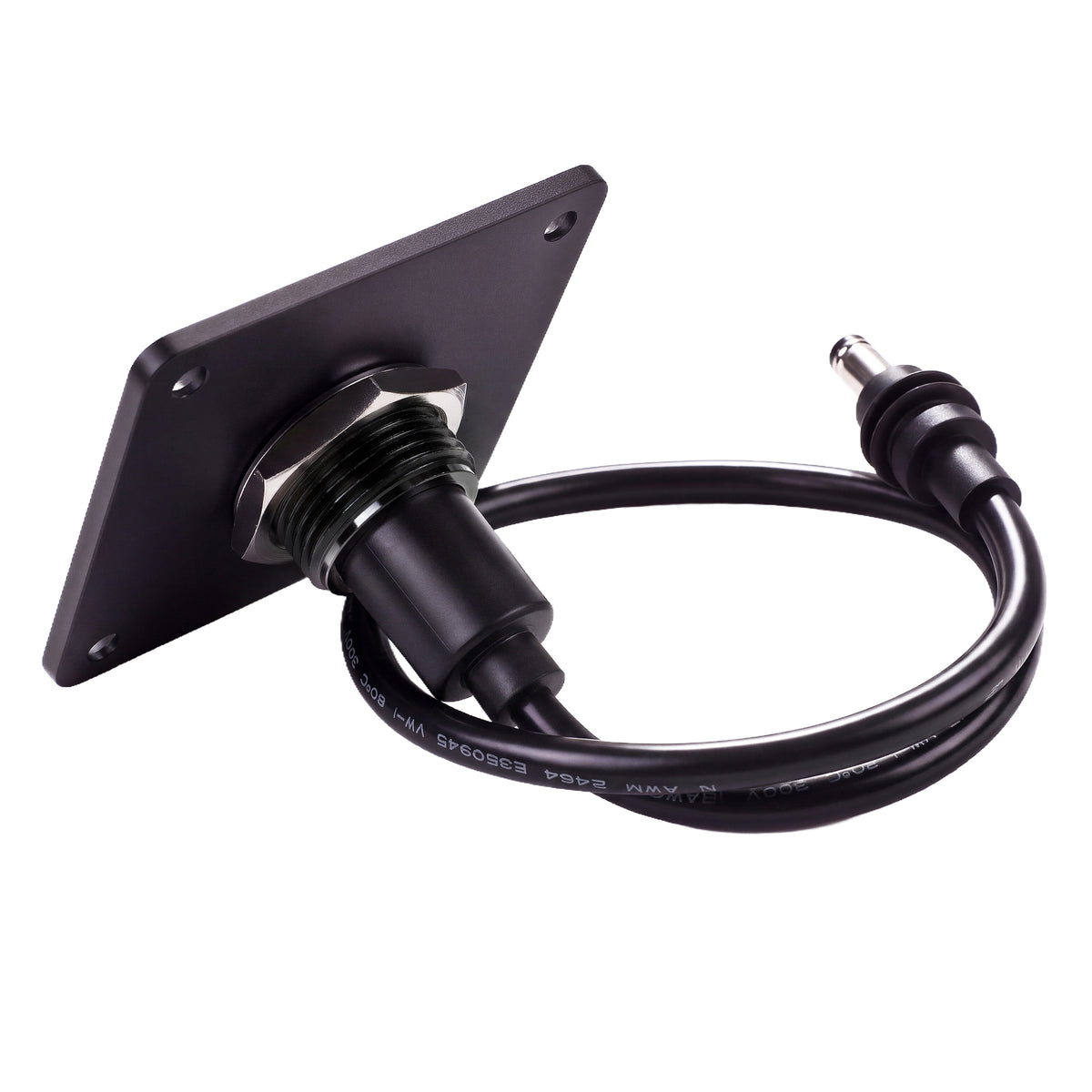

• Integrated 300mm Cable – Pre-attached cable allows connection to a suitable internal DC power supply.
• Mounting Hardware Included – Supplied with screws and foam sealing pads for installation.
• Convenient Plug-In Access – Connect and disconnect your Starlink Mini externally without routing cables through doors or windows.

Compatibility

Compatible With:

• Starlink Mini
• Suitable 5.5 × 2.1mm DC power cables and adapters
• Compatible 12V/24V vehicle power systems with appropriate Starlink Mini power regulation where required
• 4WD canopies and touring vehicles
• Caravans, camper trailers and motorhomes
• Custom off-grid installations with a suitable DC power supply

Not Compatible With:

• Starlink Gen 2 Standard
• Starlink Gen 3 Standard
• Starlink Flat High Performance

Important: This kit is a DC power pass-through only. It does not convert, boost or regulate voltage. Ensure the connected power supply provides the correct voltage, polarity and sufficient power for your Starlink Mini.

Dimensions

• Mounting Plate: Approx. 60 × 60mm
• Recessed Mounting Depth: Approx. 50mm
• Cable Length: Approx. 300mm
• DC Socket: 5.5 × 2.1mm female
• Mounting Hole: Approx. 28–44mm depending on installation requirements
• Mounting Plate Material: Aluminium
• Colour: Black
• Installation Type: Recessed wall or panel mount

Measurements are approximate. Confirm installation clearances and required cut-out dimensions before drilling.

Installation

Installation Difficulty: Moderate – requires drilling and basic DC wiring knowledge.

1. Select Mounting Location – Choose a suitable external wall or panel location with adequate clearance behind the surface for the recessed socket and internal cable.
2. Prepare Mounting Hole – Measure the socket housing and cut the required opening, ensuring the cable and connector can pass through safely.
3. Position the Wall Socket – Feed the integrated cable through the opening and position the mounting plate against the exterior surface.
4. Secure the Mounting Plate – Install the supplied foam sealing material and fix the plate using the included mounting screws. Apply suitable exterior sealant where required.
5. Connect Internal Power – Connect the internal DC cable to a compatible, correctly polarised Starlink Mini power supply.
6. Test the Connection – Connect your compatible external Starlink Mini power cable and verify correct operation.

Installation Note: Ensure all electrical connections are properly insulated, protected and rated for the intended power supply. Check polarity before connecting your Starlink Mini.

Fitment & Use Notes

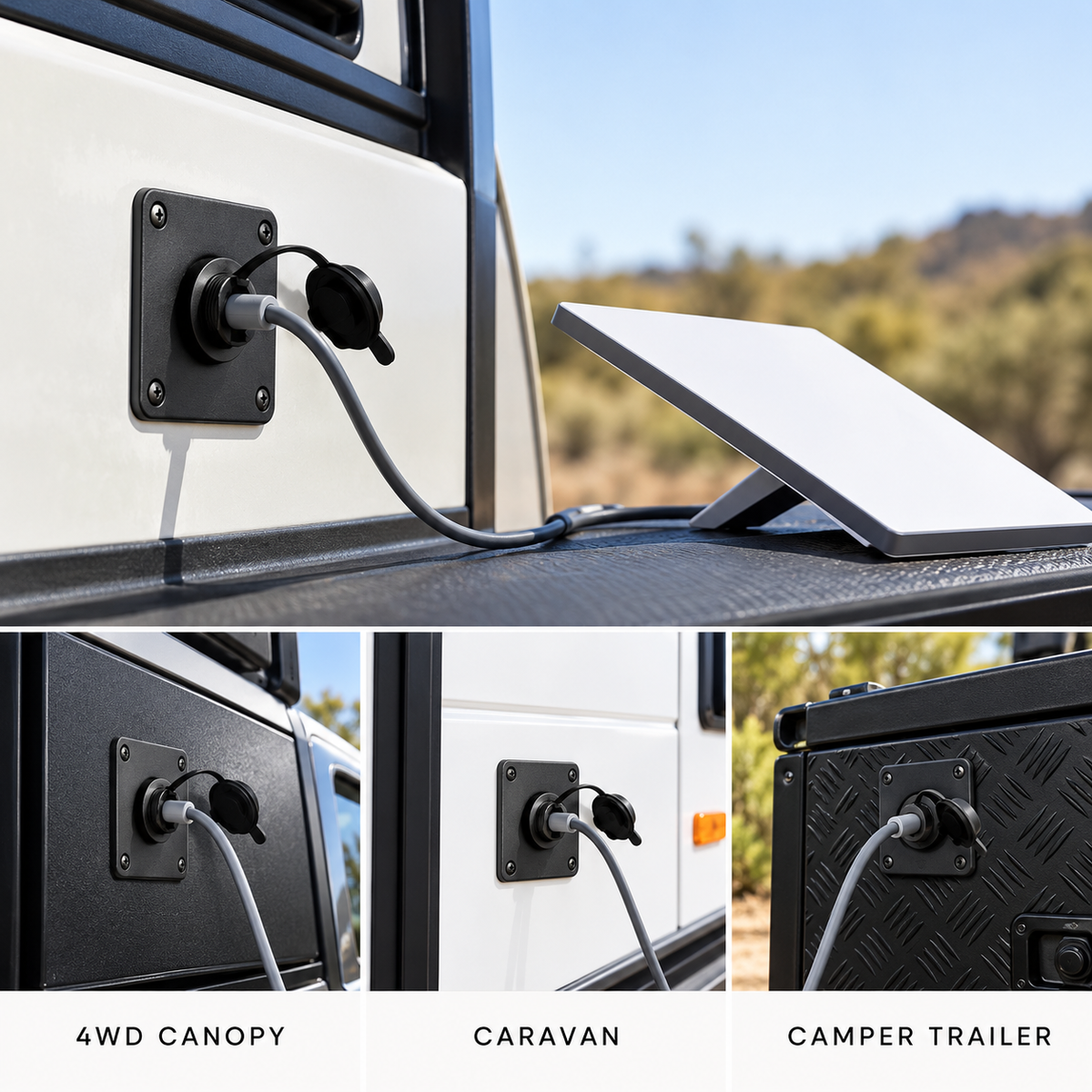

• Designed for recessed installation into suitable caravan, camper trailer, motorhome and 4WD canopy panels.
• Requires sufficient internal clearance for the socket housing and attached cable.
• The protective cap should be fitted whenever the external connection is not in use.
• Use a suitable exterior sealant around the mounting surface to help prevent water ingress.
• The wall socket passes DC power through without changing the supplied voltage.
• A compatible power supply and external Starlink Mini power cable are required.
• Avoid locations exposed to standing water or prolonged submersion.

What's Included

• 1 × Waterproof Wall Pass-Through Socket with Aluminium Mounting Plate
• 1 × Integrated DC Cable (Approx. 300mm)
• 1 × Protective Waterproof Cap (Attached)

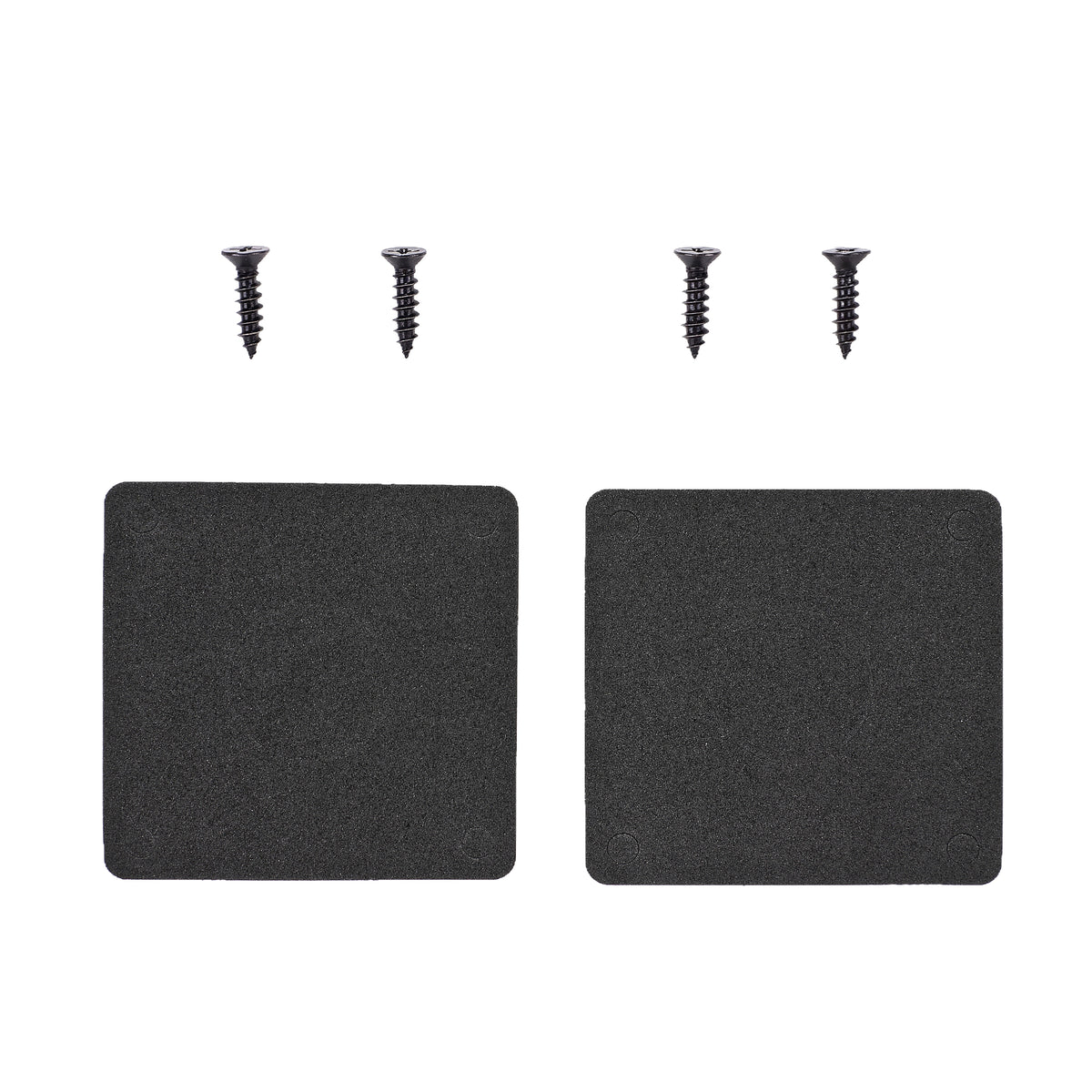

• Foam Sealing Pads
• 4 × Mounting Screws

Please Note: Starlink Mini dish, power supply and additional external power cables are not included.
